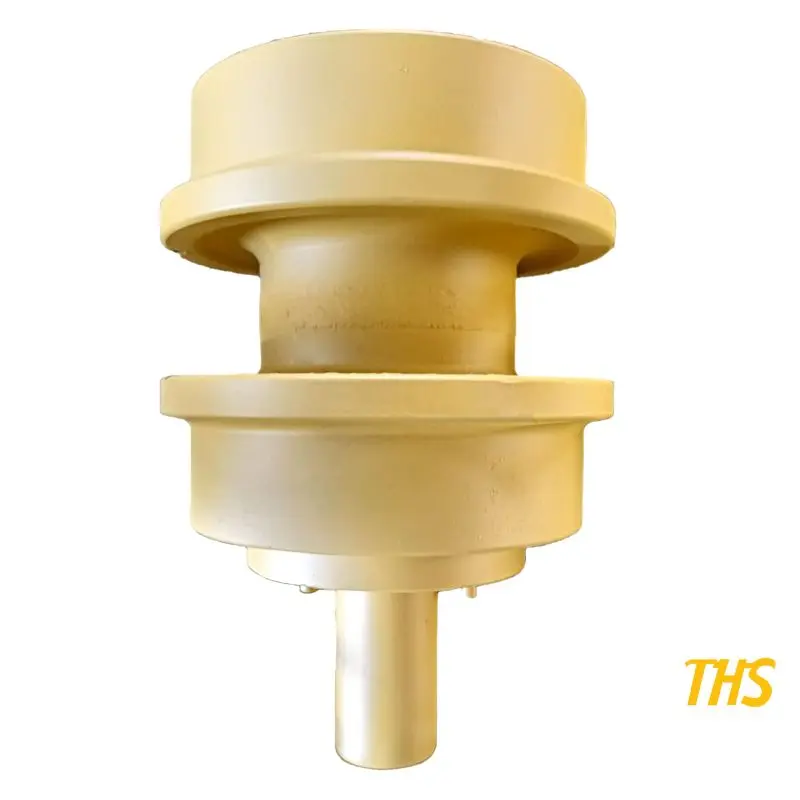

5003817 Bulldozer LIEBHERR PR731B Carrier Roller

Enhance the efficiency and reliability of your bulldozer with our carrier rollers.The carrier rollers function are to convey the weight of bulldozer to the ground,and also to limit the track to prevent sideslip.The Carrier Roller force the track to slip on the ground when machine turns.Good working and wear-resistance are important.

Material: 40Mn2/50Mn

BERCO CR2650
BERCO CR2650A
BERCO ID1482
CATERPILLAR 1V8055
CATERPILLAR 3T3206
CATERPILLAR 3Y3402
CATERPILLAR 5M7318
CATERPILLAR 9S2730
HANOMAG 3094639M
HANOMAG 3094639M91
ITM C0106100M00
ITM C0106100Y00
JOHN DEERE AT174848
KOBELCO 24100N10084F1
LIEBHERR 5003817
RICHIER 308512533
VPI VCR2650V

Product Details

Carrier roller body material：		40Mn2/50Mn
Surface hardness:		HRC52-56
Shaft material:		45#
Surface hardness:		HRC55-60
Base collar material:		QT450-10

1. Our carrier rollers use special steel and produced by new process. Every procedure goes through strict inspection and the property of compressive resistance and tension resistance can be ensured .

2. The raw material used is national standard 40Mn2 steel. The steel undergoes overall quenching and tempering, as well as intermediate frequency heat treatment.This process ensures that the surface hardness can reach HRC55-60.

3. The high-standard production and processing load-bearing shaft has excellent mechanical properties against wear, high load, and high rigidity. This greatly prolongs the service life of the assembly.
