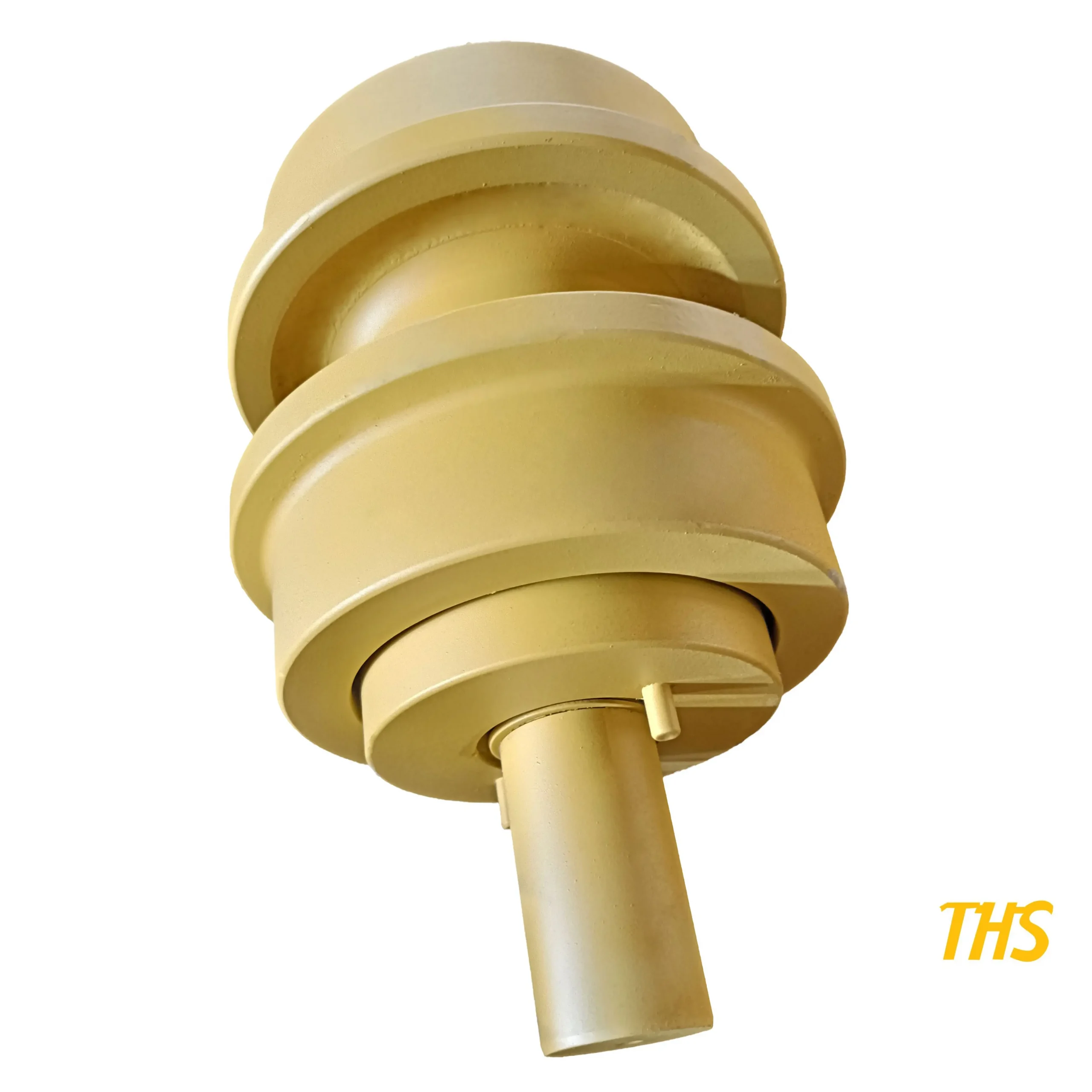

6Y1781 D6R CATERPILLAR Bulldozer Carrier Roller

Enhance the efficiency and reliability of your bulldozer with our carrier rollers.The carrier rollers function are to convey the weight of bulldozer to the ground,and also to limit the track to prevent sideslip.The Carrier Roller force the track to slip on the ground when machine turns.Good working and wear-resistance are important.

Material: 40Mn2/50Mn

BERCO CR4800
BERCO ID1460
CATERPILLAR 235-5974
CATERPILLAR 6Y1781
CNH-FIAT NEW HOLLAND 76040857
CNH-FIAT NEW HOLLAND 76090557
CNH-FIAT NEW HOLLAND 87702981
ITM C01061H0M00
JOHN DEERE AT175999
KOMATSU ALL MAKES ZZYR0021
LIEBHERR 10411554
LIEBHERR 5802111
VPI VCR4800V

Product Details

Carrier roller body material：		40Mn2/50Mn
Surface hardness:		HRC52-56
Shaft material:		45#
Surface hardness:		HRC55-60
Base collar material:		QT450-10

1. Our carrier rollers use special steel and produced by new process. Every procedure goes through strict inspection and the property of compressive resistance and tension resistance can be ensured .

2. The raw material used is national standard 40Mn2 steel. The steel undergoes overall quenching and tempering, as well as intermediate frequency heat treatment.This process ensures that the surface hardness can reach HRC55-60.

3. The high-standard production and processing load-bearing shaft has excellent mechanical properties against wear, high load, and high rigidity. This greatly prolongs the service life of the assembly.
